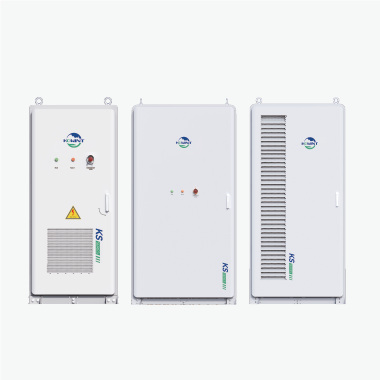

BESS Combiner Cabinet

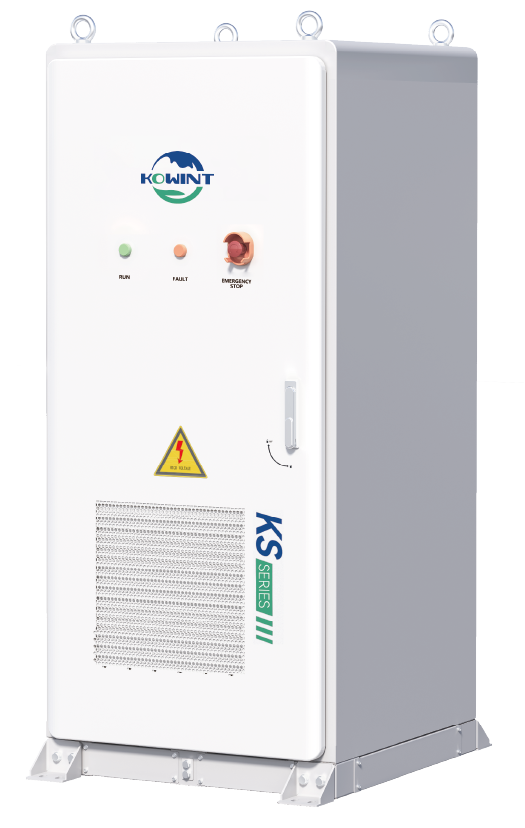

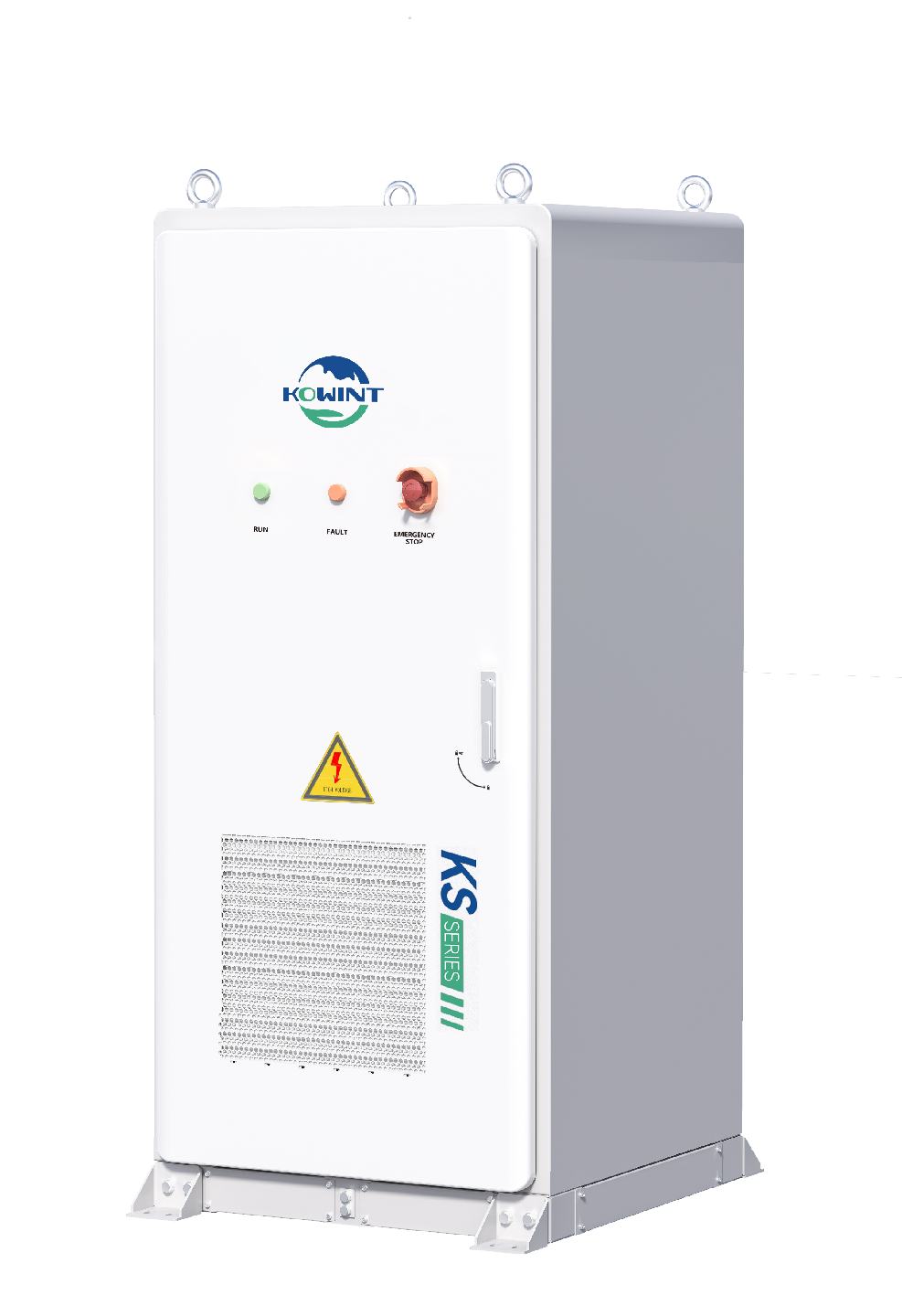

KS-233CG

KS-233CG

On-Grid or Off-Grid AC Combiner System
Input Voltage (Vac)480

Access Channel5

Output Channel1

Rated Power (kW)625

Rated Current(A)751

Anti-backfow Protection for Power GridFunctions Included

Pcs (Power Conversion System) Switch (A)250

Grid Switch, Load Switch (A)1000

lP RatingIP54

Matched for Energy Storage Systems

KS-233A 233 kWh ESS
Supports Parallel Connection of Up to 5 Units











See Datasheet Get a quote

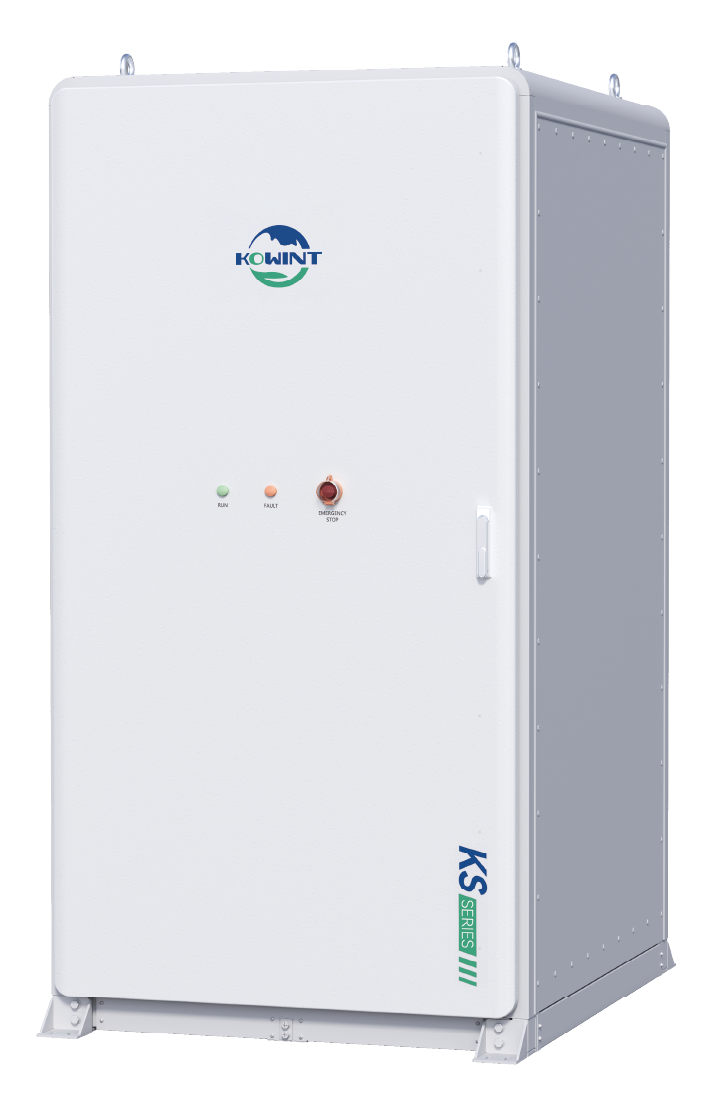

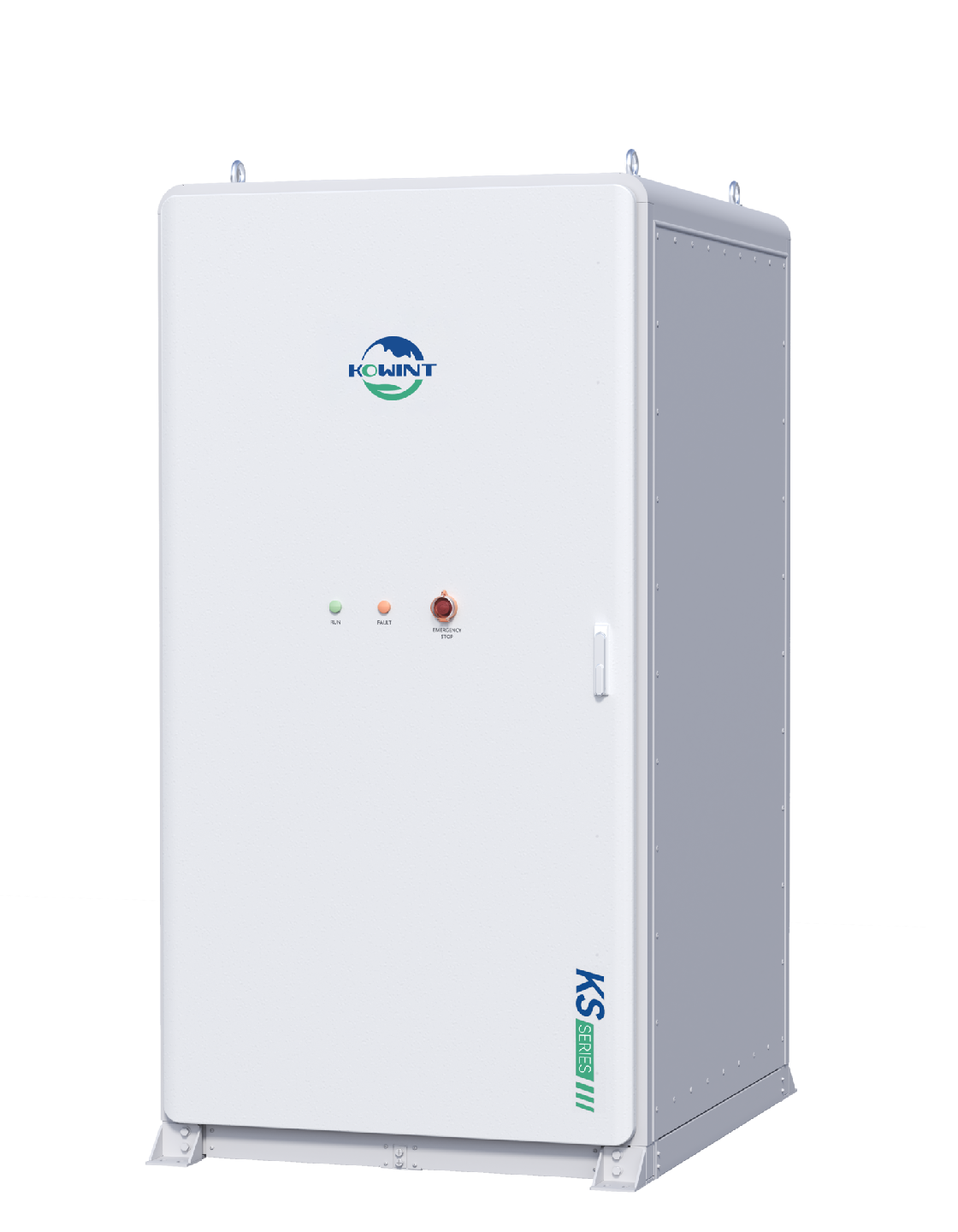

KS-233AG

KS-233AG

On/Off-Grid Switching AC Combiner System

Input Voltage (Vac)

480

Access Channel5

Output Channel1

Rated Power (kW)625

Rated Current(A)751

Grid-connected and Of-grid Switching Time≤3min

Anti-backfow Protection for Power GridFunctions Included

Pcs (Power Conversion System) Switch (A)250

Grid Switch, Load Switch (A)1000


lP RatingIP54

Matched for Energy Storage SystemsKS-233A 233 kWh ESS
Supports Parallel Connection of Up to 5 Units









See Datasheet Get a quote

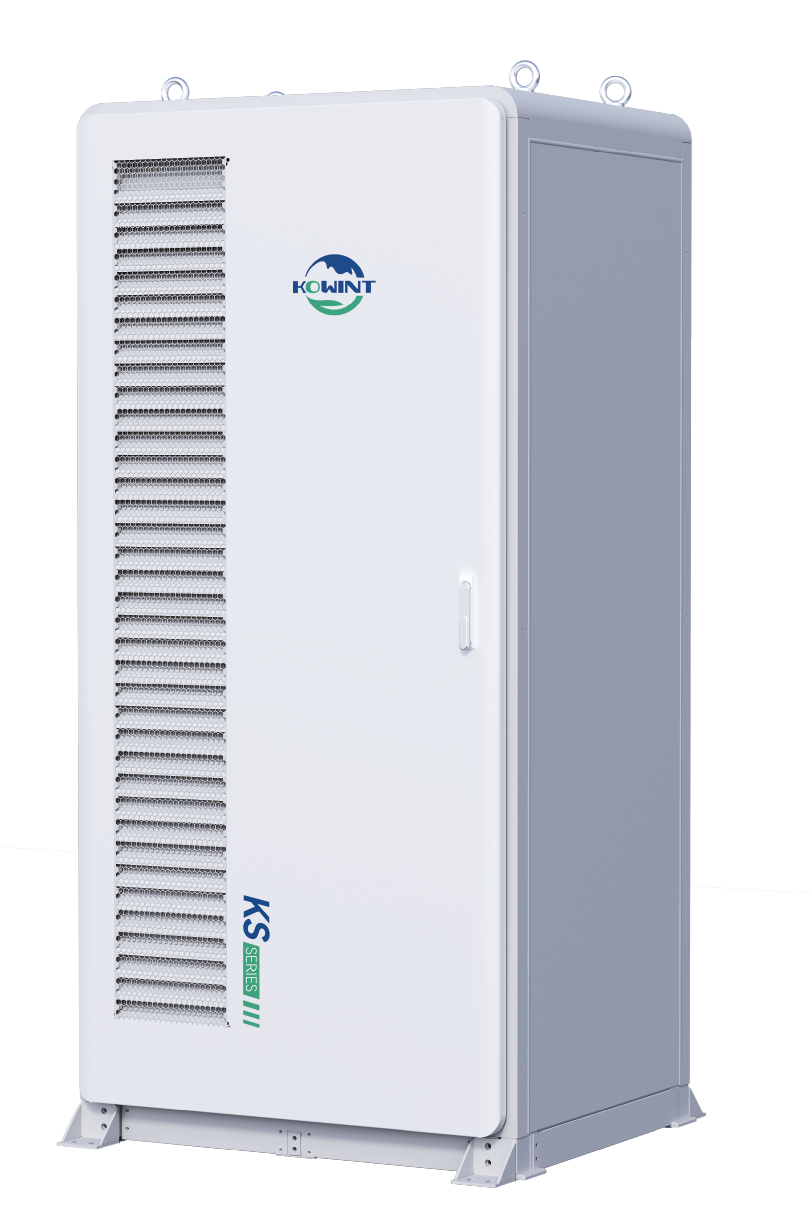

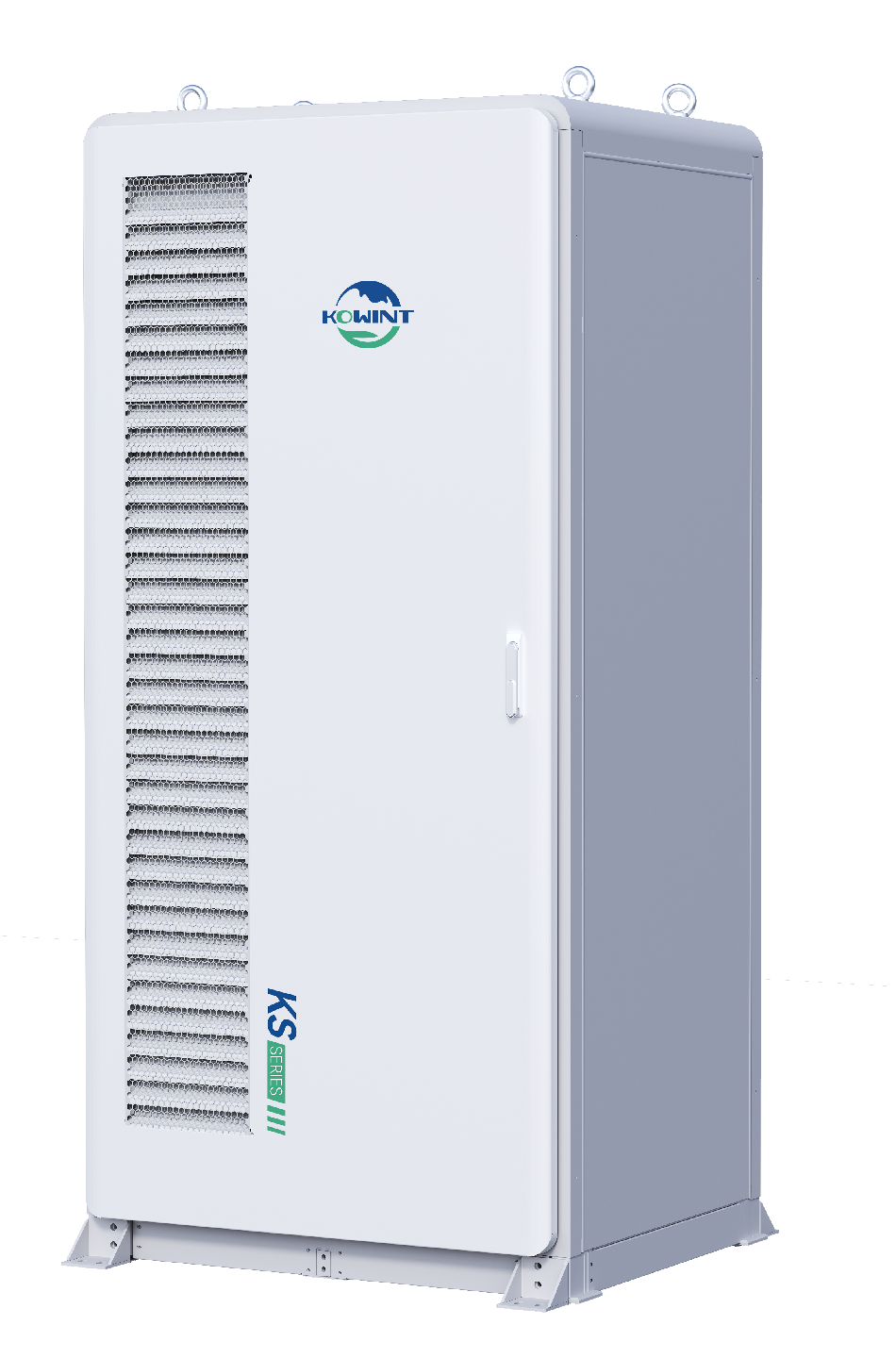

KS-600MPC

KS-600MPC

MPPT DC Combiner System
PV Input
Input Voltage (Vdc)400~750
The Max. Static Voltage Borneunder No Operation (Vdc)850
MPPT Operating Voltage Range (Vdc)400~750
MPPT Efciency95.50%
Max. Input Current (Adc)110*15
Number of MPPT15
No. of PV Strings per MPP Trackers6


DC Output


Individual Module Output Power( kW)40
Max. Number of Modules15
Total Output Power (kW)600
Output Voltage Range (Vdc)50 ~ 1000
Output Current Range (Adc)0~133.3@Per MPPT


See Datasheet Get a quote
