HV ESS Power Matrix

Power Matrix

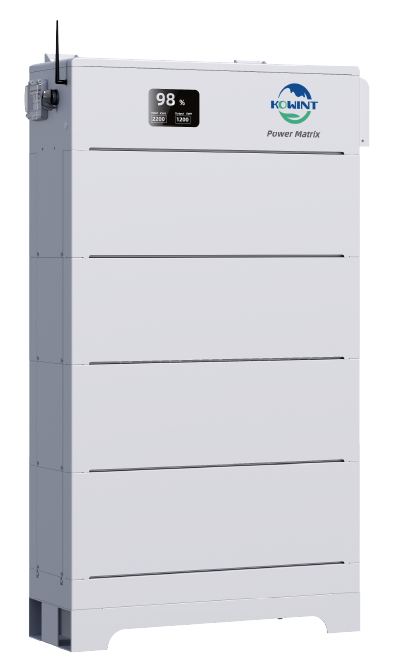

Power Matrix, KOWINT's flagship high-voltage energy storage system, integrates high-density LiFePO4 cells with a self-developed BMS/EMS. With modular scalability, cloud intelligence, and industrial-grade protection, it ensures reliable energy for homes, C&I scenarios, and edge-grid applications. Each cluster is up to 29 kW (6 battery modules). Nominal energy ranges from 10.24 to 30.72 kWh

Modular Design

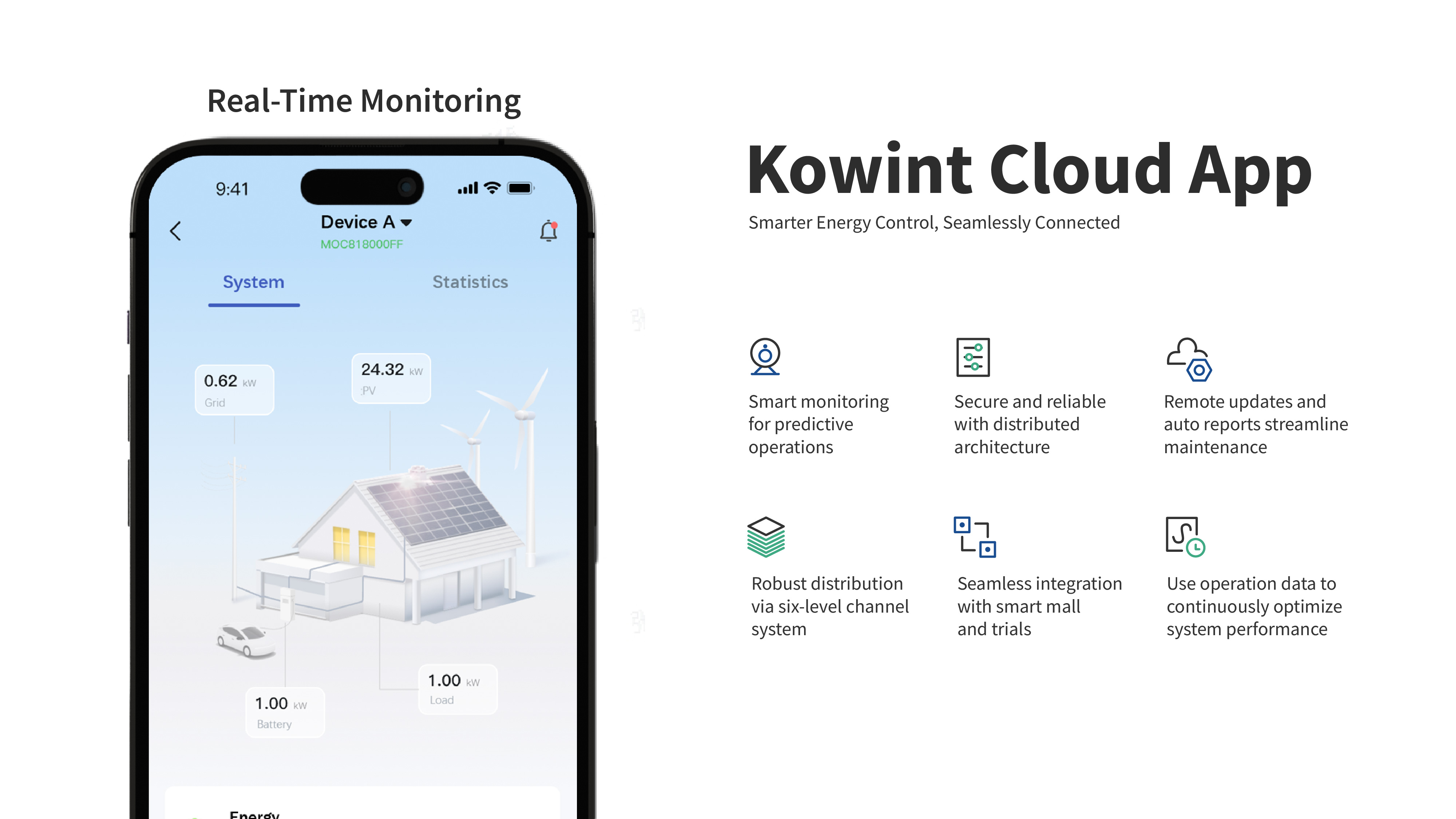

APP Remote Monitor

IP 65

>6000 Life Cycles

Power Matrix

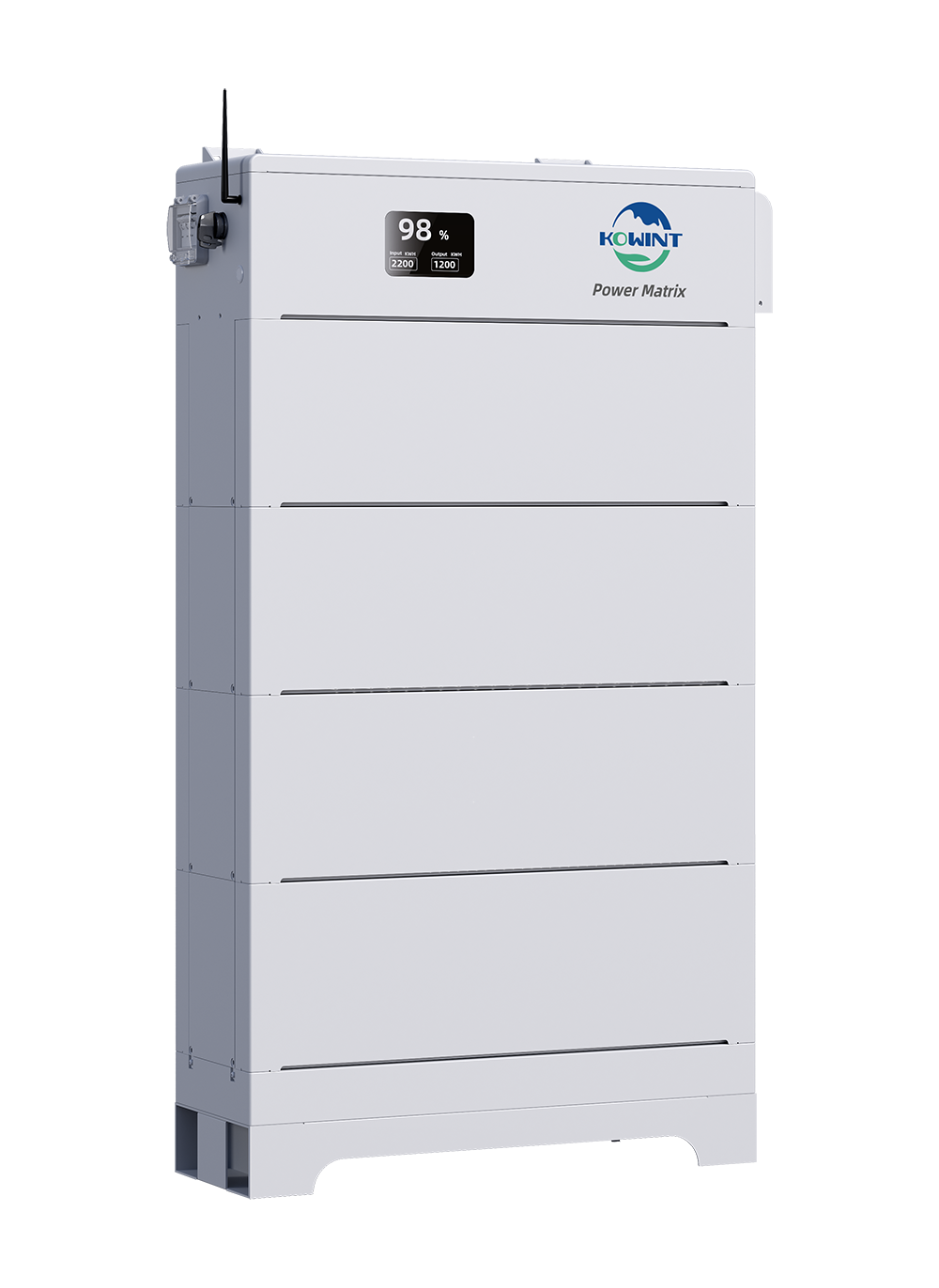

General Parameters / BESS Specifications / System Characteristics /

Dimension - WDH(mm/in)	820269996/1282/1568/1854/2140
Net Weight(kg/lb)	151.5/211.5/271.5/331.5/391.5
Operating Temperature(°C)	-20~ 50
Operating Humidity	Up to 92 % non-condensing
Cycle Life	6000 times@25°C
Communication Method	CAN, RS485, WiFi
Warranty	10 Years

See Datasheet Get a quote

Battery Module	1P32S
Cell Capacity(Ah)	50
Module Amount	2/3/4/5/6
Nominal Energy(kWh)	10.24/15.36/20.48/25.60/30.72
Nominal Voltage(V)	204.8/307.2/409.6/512.0/614.4
Nominal Power(kW)	9.83/14.57/19.66/24.58/29.50
Operating Voltage Range(V)	172.8~233.6/259.2~350.4/345.6~467.2/432~584/518.4~700.8
Max.Continuous Current(A)	48
Max. Current	≤75A@10S

See Datasheet Get a quote

BESS Compliances	IEC62619, UN38.3, MSDS, UKCA, CE, UL1973
Installation Method	Stack Mounting
Installation Scene	Indoor or Outdoor
Ingress Protection	IP55
Warranty	10 Years

See Datasheet Get a quote
